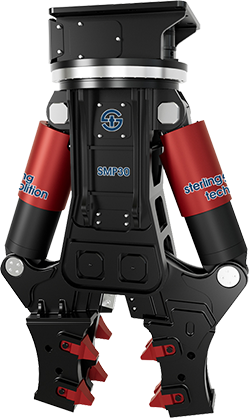

Two Cylinder
Multi Processors

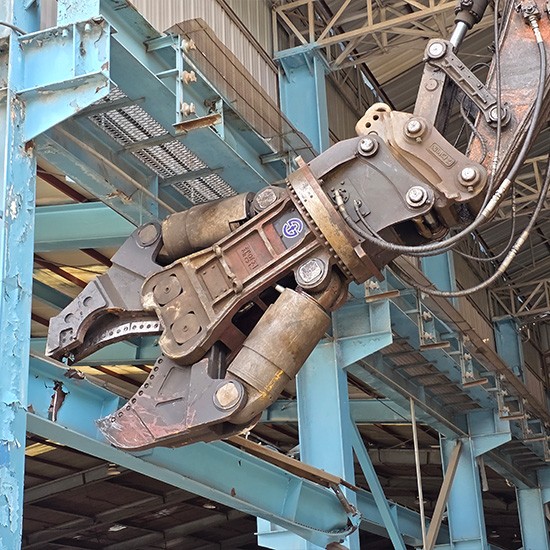

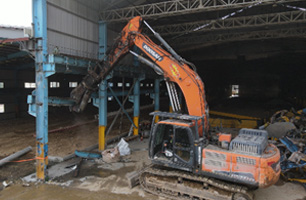

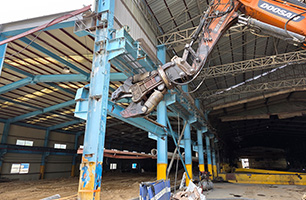

The Sterling Two Cylinder Multi-Processor combines multiple functions in one versatile attachment. By simply changing the jaw set, it can perform crushing, cutting, demolishing and pulverizing tasks efficiently. Ideal for primary and secondary demolition, it provides superior power, speed, and flexibility on site.

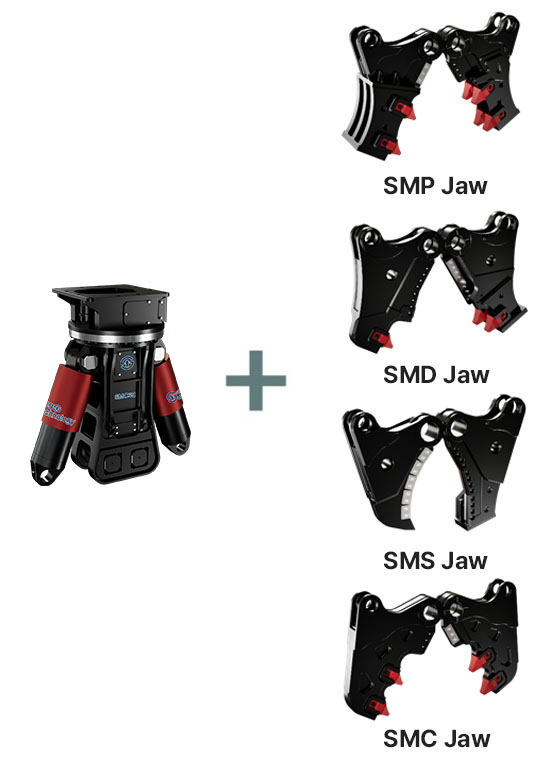

FOUR QUICK-CHANGE JAW SETS

Product features

Crusher and Pulverizer Jaws are equipped with replaceable teeth

Teeth are made by a special casting method

A built-in speed valve ensures faster cycle times and crushing and cutting forces

Interchangeable and reversible cutting blades

Capable of cutting through structural steel, rebar, and thick H-beams

Delivers top-tier cutting power in its class

Four quick-change Jaw sets : Pulverizer, Demolition, Shear and Crusher

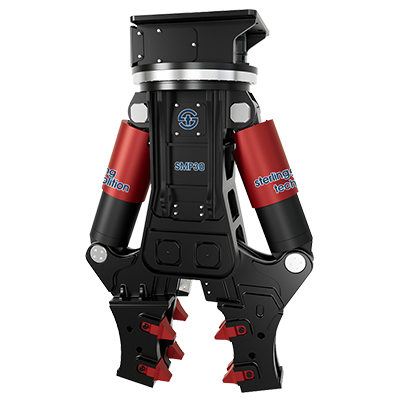

SMP Series (Pulverizer)

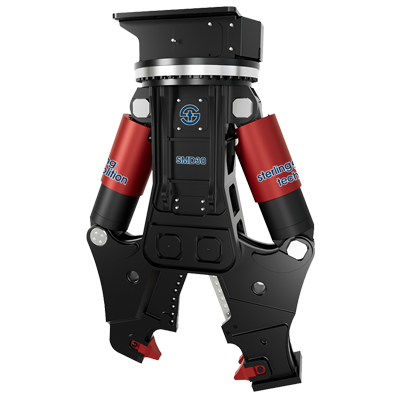

SMD Series (Demolition)

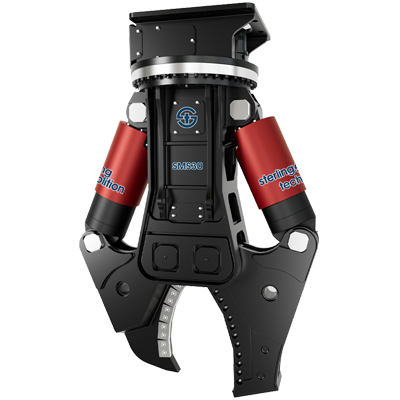

SMS Series (Shear)

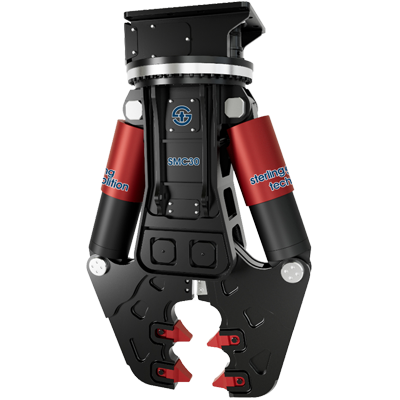

SMC Series (Crusher)

SPECIFICATION

SMP Series (Pulverizer)

SMD Series (Demolition)

SMS Series (Shear)

SMC Series (Crusher)

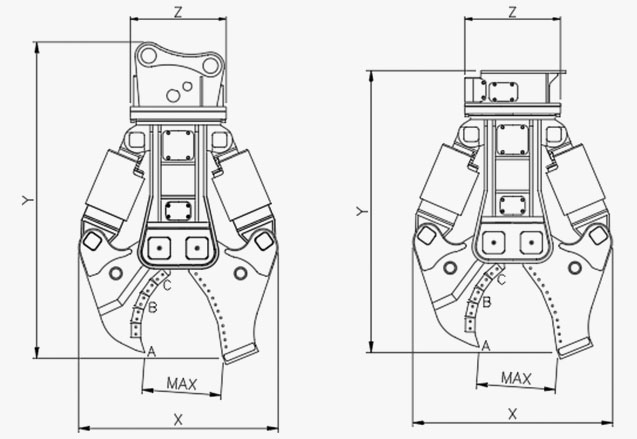

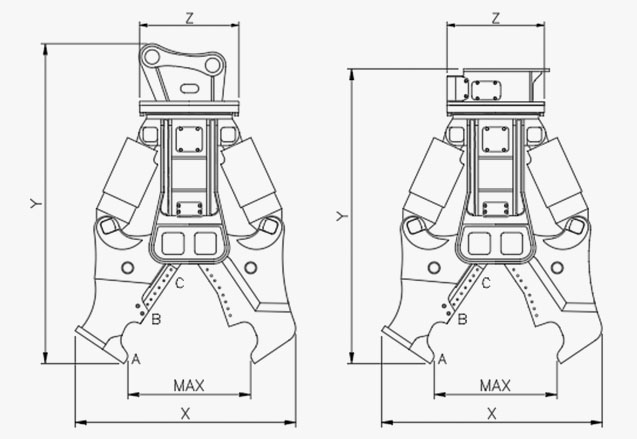

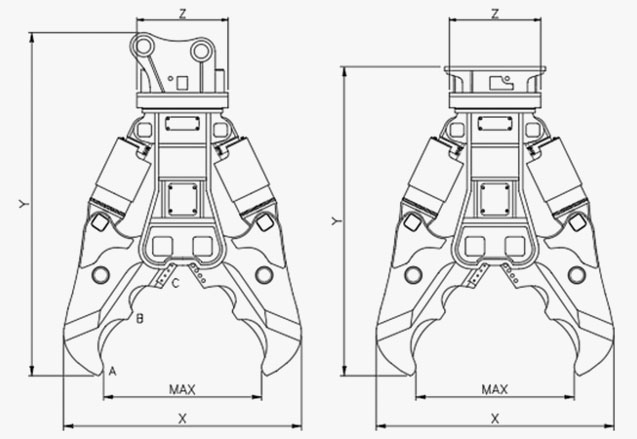

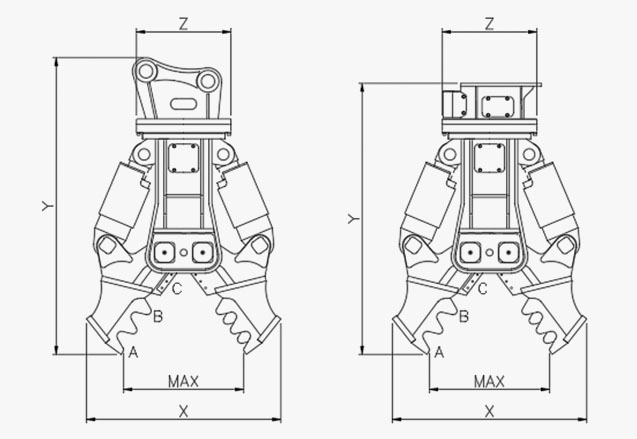

Description	Unit	SMP 15	SMD 15	SMC 15	SMS 15	SMP 20	SMD 20	SMC 20	SMS 20	SMP 30
Operating Weight	kg	1,325	1,280	1,250	1,140	2,000	1,965	1,910	1,760	2,800
Operating Weight	lb	2,921	2,822	2,756	2,513	4,409	4,332	4,211	3,880	6,173
Overall Length, Y-axis (Pin Type)	mm	1,925	1,950	1,950	1,980	2,020	2,020	1,945	2,075	2,430
Overall Length, Y-axis (Pin Type)	Inch	76	77	77	78	80	80	77	82	96
Overall Length, Y-axis (Plate Type)	mm	1,770	1,795	1,795	1,825	1,835	1,835	1,760	1,890	2,225
Overall Length, Y-axis (Plate Type)	Inch	70	71	71	72	72	72	69	74	88
Overall Width, X-axis	mm	1,220	1,210	1,210	1,130	1,480	1,450	1,340	1,350	1,730
Overall Width, X-axis	Inch	48	48	48	44	58	57	53	53	68
Overall Width, Z-axis	mm	650	650	650	650	700	700	700	700	800
Overall Width, Z-axis	Inch	26	26	26	26	28	28	28	28	31
Max. Opening Width, MAX	mm	770	815	815	490	900	900	950	550	1,000
Max. Opening Width, MAX	Inch	30	32	32	19	35	35	37	22	39
Crushing & Cutting	ton (A)	55	50	50	60	80	80	75	90	145
Force	ton (B)	90	85	85	100	160	160	155	175	250
Force	ton (C)	180	180	180	175	480	480	480	470	560
Operating Pressure	kg/cm²	300	300	300	300	320	320	320	320	350
Operating Pressure	psi	4,267	4,267	4,267	4,267	4,551	4,551	4,551	4,551	4,978
Oil Flow Rate	LPM	100 ~ 160	100 ~ 160	100 ~ 160	100 ~ 160	200 ~ 250	200 ~ 250	200 ~ 250	200 ~ 250	250 ~ 320
Oil Flow Rate	GPM	26 ~ 42	26 ~ 42	26 ~ 42	26 ~ 42	53 ~ 66	53 ~ 66	53 ~ 66	53 ~ 66	66 ~ 85
Motor Setting Pressure	kg/cm²	160	160	160	160	160	160	160	160	160
Motor Setting Pressure	psi	2,276	2,276	2,276	2,276	2,276	2,276	2,276	2,276	2,276
Motor Oil Flow Rate	LPM	36 ~ 40	36 ~ 40	36 ~ 40	36 ~ 40	36 ~ 40	36 ~ 40	36 ~ 40	36 ~ 40	36 ~ 40
Motor Oil Flow Rate	GPM	10 ~ 11	10 ~ 11	10 ~ 11	10 ~ 11	10 ~ 11	10 ~ 11	10 ~ 11	10 ~ 11	10 ~ 11
Suitable Excavator	ton	14 ~ 18	14 ~ 18	14 ~ 18	14 ~ 18	19 ~ 26	19 ~ 26	19 ~ 26	19 ~ 26	26 ~ 32

※ Specifications above are subject to change without notice.

Description	Unit	SMD 30	SMC 40	SMS 40	SMP 40	SMD 40	SMC 40	SMS 40	SMC 50	SMS 50
Operating Weight	kg	2,750	2,630	2,550	3,850	3,750	3,680	3,550	4,750	4,600
Operating Weight	lb	6,063	5,798	5,622	8,488	8,267	8,113	7,826	10,472	10,141
Overall Length, Y-axis (Pin Type)	mm	2,430	2,650	2,440	2,780	2,750	2,705	2,750	2,980	2,800
Overall Length, Y-axis (Pin Type)	Inch	96	104	96	109	108	106	108	117	110
Overall Length, Y-axis (Plate Type)	mm	2,225	2,445	2,235	2,540	2,510	2,465	2,510	2,640	2,460
Overall Length, Y-axis (Plate Type)	Inch	88	96	88	100	99	97	99	104	97
Overall Width, X-axis	mm	1,730	1,800	1,585	1,965	1,845	1,785	1,690	2,260	1,785
Overall Width, X-axis	Inch	68	71	62	77	73	70	67	89	70
Overall Width, Z-axis	mm	800	800	800	800	800	800	800	900	900
Overall Width, Z-axis	Inch	31	31	31	31	31	31	31	35	35
Max. Opening Width, MAX	mm	1,000	1,100	600	1,140	1,220	1,250	670	1,400	760
Max. Opening Width, MAX	Inch	39	43	24	45	48	49	26	55	30
Crushing & Cutting	ton (A)	145	135	150	180	175	170	195	210	225
Force	ton (B)	250	240	285	320	315	310	320	420	435
Force	ton (C)	560	560	550	785	785	785	770	835	820
Operating Pressure	kg/cm²	350	350	350	350	350	350	350	350	350
Operating Pressure	psi	4,978	4,978	4,978	4,978	4,978	4,978	4,978	4,978	4,978
Oil Flow Rate	LPM	250 ~ 320	250 ~ 320	250 ~ 320	360 ~ 380	360 ~ 380	360 ~ 380	360 ~ 380	360 ~ 380	360 ~ 380
Oil Flow Rate	GPM	66 ~ 85	66 ~ 85	66 ~ 85	95 ~ 100	95 ~ 100	95 ~ 100	95 ~ 100	95 ~ 100	95 ~ 100
Motor Setting Pressure	kg/cm²	160	160	160	160	160	160	160	160	160
Motor Setting Pressure	psi	2,276	2,276	2,276	2,276	2,276	2,276	2,276	2,276	2,276
Motor Oil Flow Rate	LPM	36 ~ 40	36 ~ 40	36 ~ 40	75 ~ 80	75 ~ 80	75 ~ 80	75 ~ 80	75 ~ 80	75 ~ 80
Motor Oil Flow Rate	GPM	10 ~ 11	10 ~ 11	10 ~ 11	20 ~ 21	20 ~ 21	20 ~ 21	20 ~ 21	20 ~ 21	20 ~ 21
Suitable Excavator	ton	26 ~ 32	26 ~ 32	26 ~ 32	30 ~ 40	30 ~ 40	30 ~ 40	30 ~ 40	36 ~ 48	36 ~ 48

※ Specifications above are subject to change without notice.
