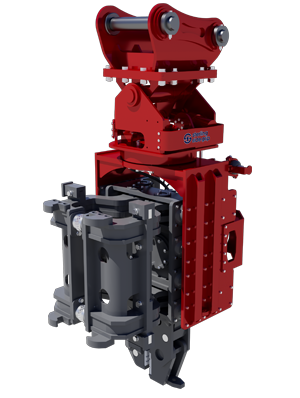

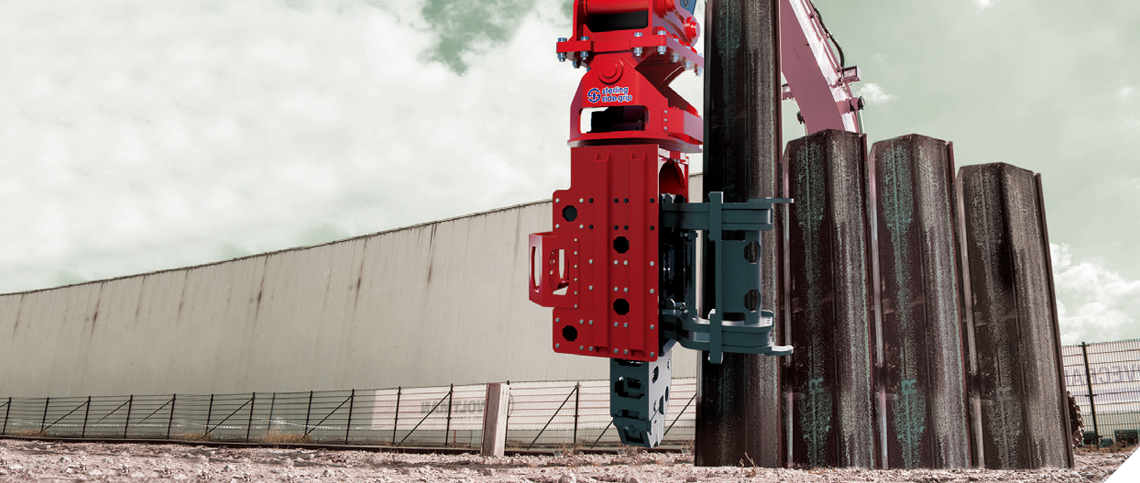

MULTI-SIDE GRIP PILE DRIVERS

Side grip type excavator-mounted vibratory pile driver

Job Applications

Significantly wider offering & 4 market segments enable further success!

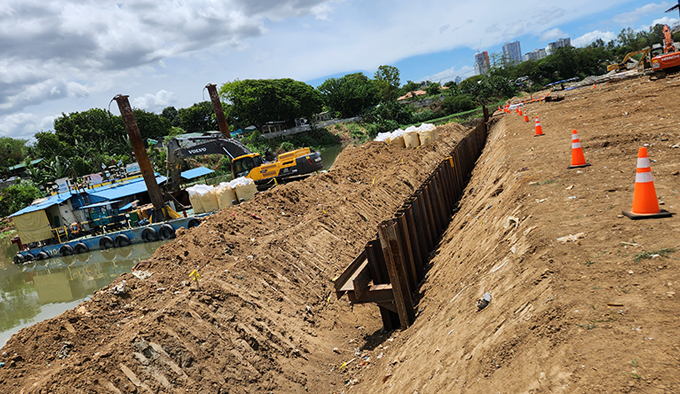

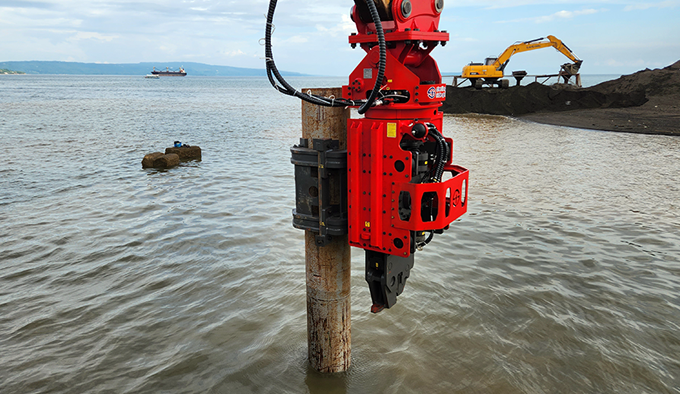

SEA SIDE
RIVER SIDE

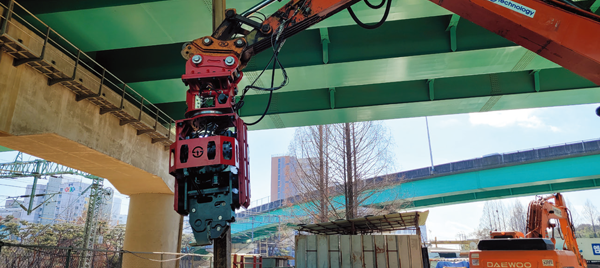

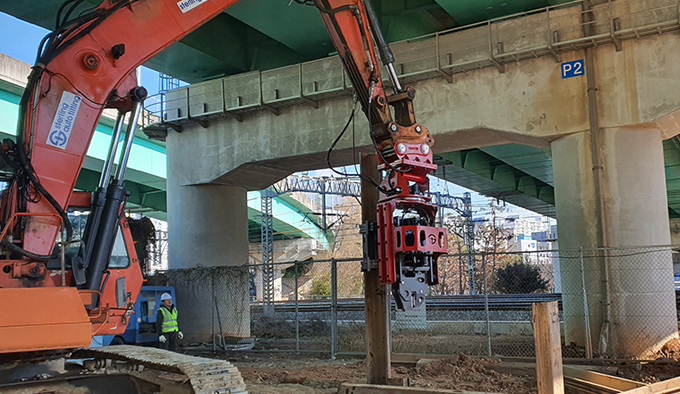

HEAD ROOM CONSTRUCTION

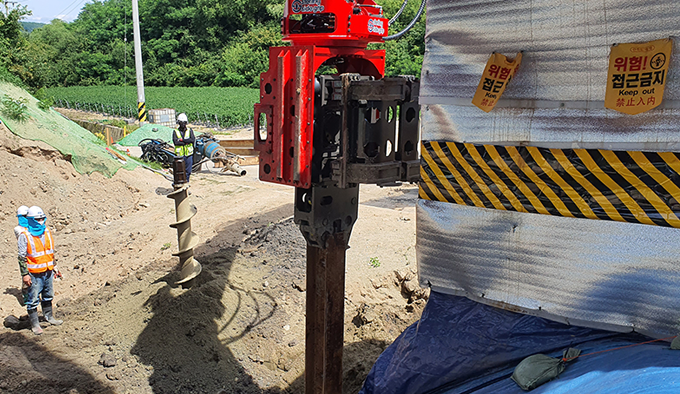

CONFINED SPACE

SPECIFICATION

Side grip type excavator-mounted vibratory pile driver

Model	Unit	SG15	SG25	SG30	SG40
Suitable Excavator	ton	14~22	20~26	28~36	36~50
Weight (Excl. Mounting Adapter)	Kg / Lbs	1,974 / 4,299	2,820 / 6,217	3,300 / 7,276	3,800 / 8,378
Setting Pressure	bar / PSI	300 / 4,350
Oil Flow	lpm / gpm	90-108 / 24~29	150-170 / 40~45	180-220 / 48~58	240-260 / 63~69
Centrifugal force	kN / Tons	313 / 34	530 / 58	580 / 64	940 / 103
Frequency	RPM	2,800~3,370	3,300~3,600	2,800~3,600	3,000~3,250
Rotation	deg	360˚
Dimension (A x B x C)	mm inch	1,247 x 1,009 x 2,486 49.09 x 39.72 x 97.87	1,510 x 1,039 x 2,765 59.5x40.9x108.9	1,534 x 1,039 x 2,886 60.4x40.9x113.6	1,750 x 1,039 x 3,070 68.9x40.9x120.9
Tilting degree	deg	±30
Bottom Jaw open	mm / inch	65 / 2.6
Side clamp open	mm / inch	288 / 12.33			312 / 12.28
Min Pile Grip dia	mm / inch	76 / 3
Max Pile Grip dia	mm / inch	610 / 24

* Specifications above are subject to change without notice.

FEATURES FOR STERLING SIDE GRIP

Available for a wide ranges of piles

Sheet piles, H beams, I-H beams, and round-piles

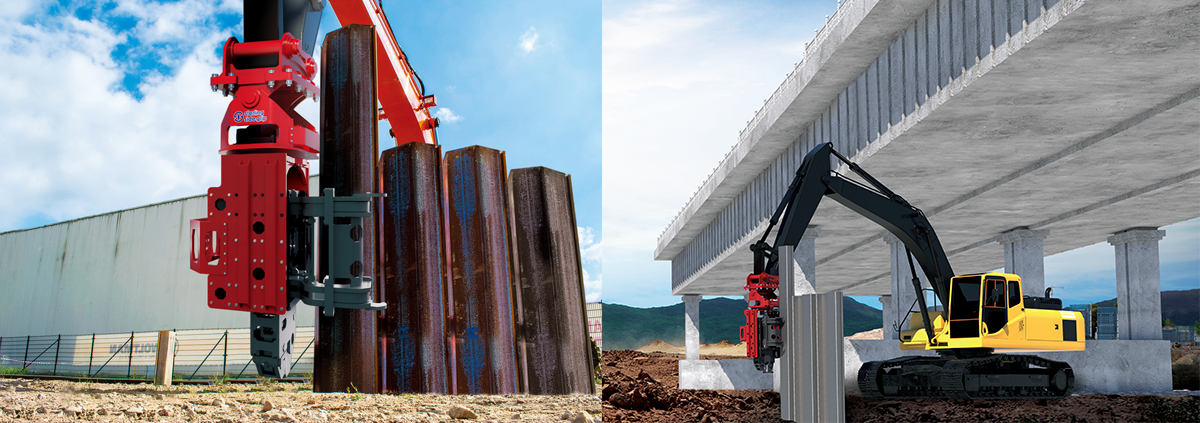

Versatile piling at headroom job site

Versatile piling at a confined space job site

Precise and accurate side clamping

360-degree Swivel rotatable grip pads enable precisely and accurately clamping

Quicker and more powerful

Faster penetration and extraction than other side grip pile drivers thanks to bigger and double eccentric weight

Low maintenance cost & easy maintenance

Concise structure of components

Rigid and durability

Balanced counter weighs and rigid rubber cushion

Model selection guide

Please refer to the following selection table for selecting suitable Sterling side grip models for the excavators.

Excavator size Pile size (length/weight)	36-50 ton	28-36 ton	13~22 ton
6m/2800kg	SG40
12m/1900kg
16m/1300kg
8m/2300kg		SG30 / SG25
12m/1800kg
16m/1200kg
6m/1200kg			SG15
8m/1000kg
10m/900kg
Suitable piles
Sheet piles	width 400-1200mm, depth 200mm
H-beams/Round-piles	Max 500x300 / Max Dia 610mm

※ Please take into consideration for oil flow/pressure, lifting capacity/stability of excavators, soil and site conditions.

Model	Unit	SG15
Bottom Jaw open	mm / inch	65/2.6
Side clamp open	mm / inch	337 / 13.2
Min Pile Grip Ø	mm / inch	76/3
Max Pile Grip Ø	mm / inch	610/24

※ Specifications above are subject to change without notice.

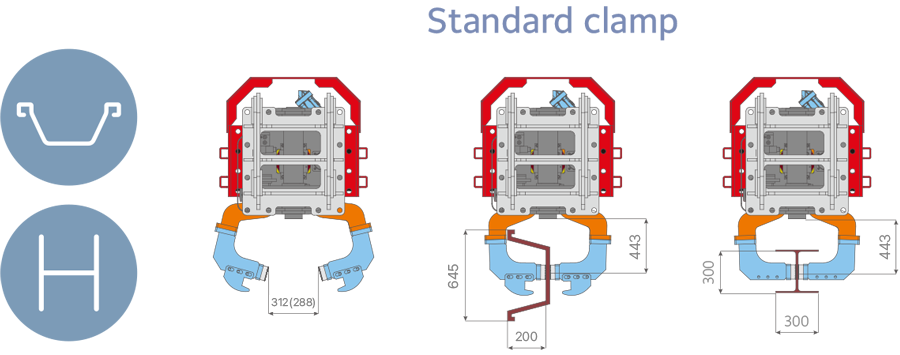

CLAMP OPTION SPECIFICATION

The following clamp selection guide provides the general guidelines for selecting the correct clamp for the different types and sizes of piles

CLAMP OPTION SPECIFICATION

Higher productivity than hydraulic breaker

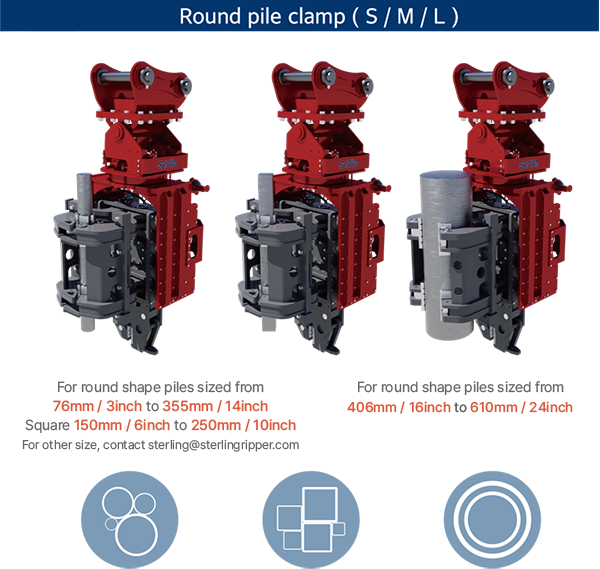

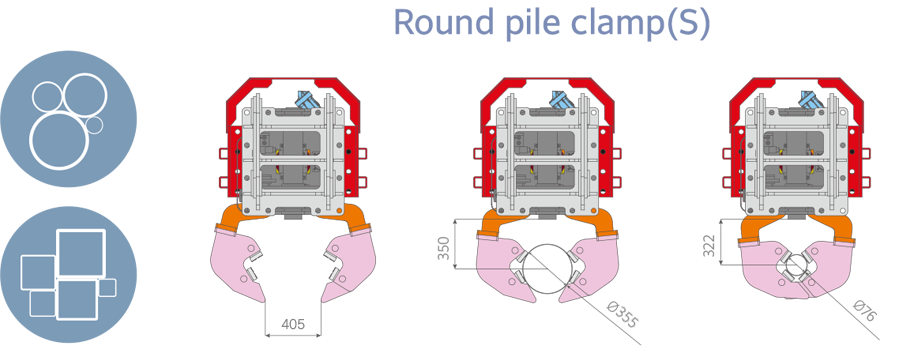

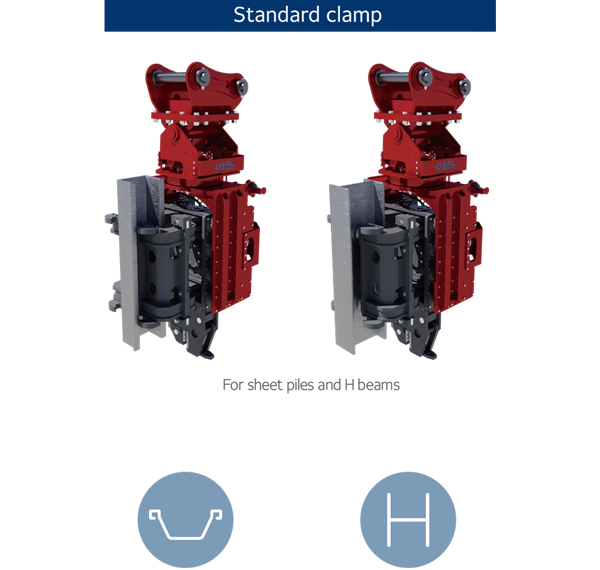

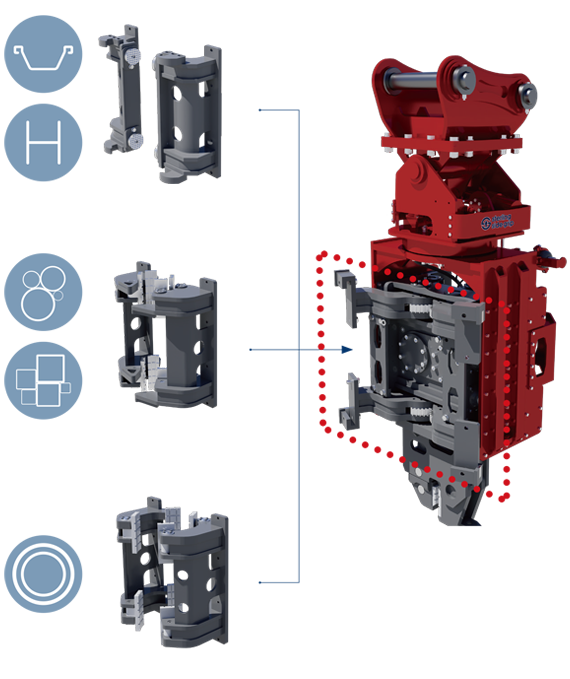

Thanks to its interchangeable side clamp system, the Sterling Side Grip pile driver can handle all types of piles with its multiple clamps, and it offers quick transfer capability between various applications. Round pile clamp(S) and round pile clamp(L) are an option.

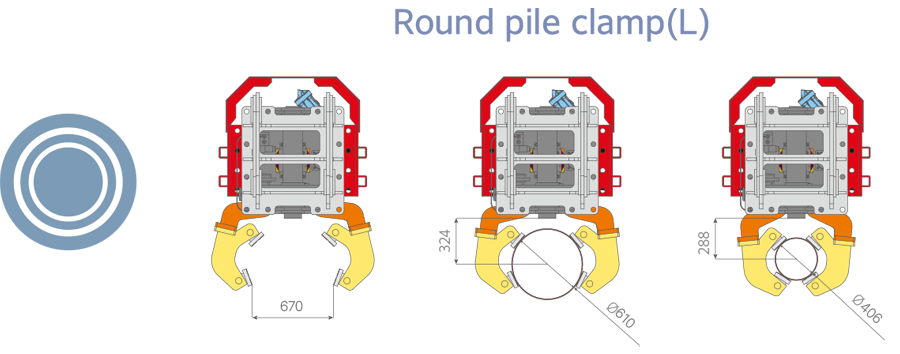

NO NEED TO CHANGE ROUND CLAMP(L) UPTO Ø610mm / 24inch

Contact us for bigger than Ø610mm / 24inch - sterling@sterlingripper.com

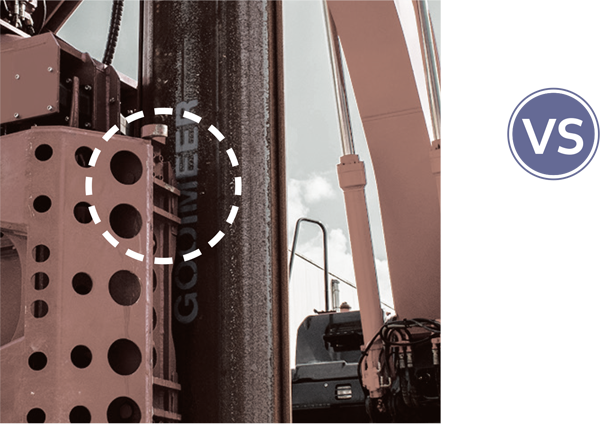

CONVENTIONAL PILE DRIVER vs STERLING SIDE GRIP

Conventional pile driver
Sterling Side grip pile driver

	Conventional Ripper’s bearings	Sterling Ripper’s bearings
Advantages	-	High vibratory power at the same size of bearings
	-	At least two times longer life time of bearings
	-	Higher durability at hard-rock job sites

Conventional pile driver
Conventional pile driver Sterling Side grip pile driver

	Conventional pile driver	Sterling Side grip pile driver

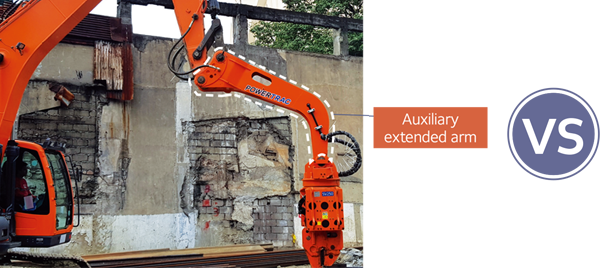

Feature	Auxiliary extended arm required Fixed type mounting adapter or hydraulic reviving mounting adapter No hydraulic tilt function of mounting adapter	No auxiliary extended arm required Hydraulic revolving mounting adapter - 360 degree Hydraulic tilt function of mounting adapter - tilt degree ±30
Strong point	Low price	Cost effective : Quicker piling up to by 30% than conventional pile driver Versatile : · Piling at headroom construction site and piling at confined space job site · Wide ranges of piles Sheet piles, H beams, l-H beams, and round-piles Safe : · A single excavator operator required, no need ground crew or assistant needed
Weak point	Impossible piling at headroom job site, and at confined space job site A ground crew or assistant required besides an excavator operator	Relatively high initial investment due to high purchasing price

Sterling Side clamping

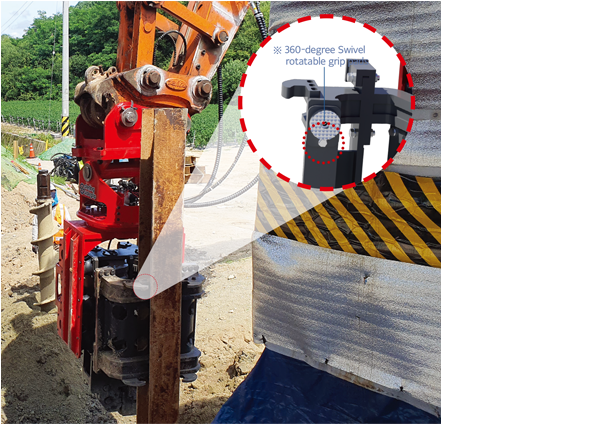

360-degree Swivel rotatable grip pads enable precisely and accurately clamping - Precise and accurate side clamping clamping

Conventional Side grip clamping unit

The use of fixed jaws in a four-pad, dual-arm clamping system may lead to insufficient gripping accuracy. Repeated gripping errors can result in structural damage, including cracks in the clamping cylinder and arms.
Sterling Side grip clamping unit

With 360-degree swivel capability and multi-angle tilt functionality, the jaws can securely grip piles even in corner positions by pivoting and holding firmly. This ensures precise and accurate clamping, even on rough or uneven surfaces.

Solution of Sterling Ripper for Vibratory Ripper’s drawback

Solution	How to do & Effect

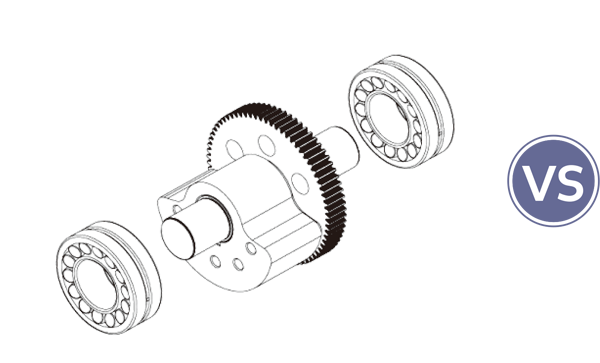

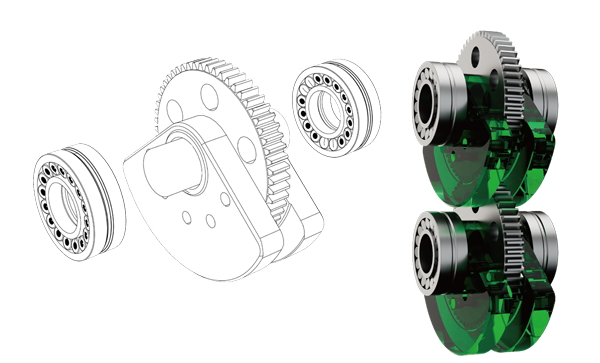

Centered double eccentric weights	Unique design of centered double eccentric weights allow better durability of bearings

Conventional Pile driver's bearings
Sterling Side grip's bearings

	Conventional Pile driver's bearings	Sterling Side grip's bearings

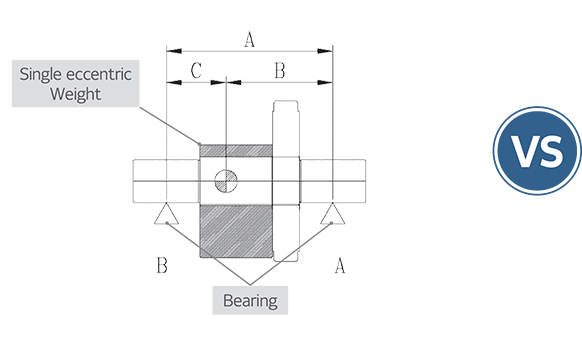

Distance from axis A	A=B+C, B > C	A=B+C, B = C
Center of gravity	B and C ≠ A/2	B and C = A/2
Weight distribution	“Bearing B” has more weight than “bearing A”.	Weight of “A bearing” and “B bearing” is the same.
Effect	Life time of both “A bearing” and “B bearing” is shorten due to imbalance of their weight.	Longer life time of both “A bearing” and “B bearing”
