STERLING TECHNOLOGY
One Cylinder
Multi Processors

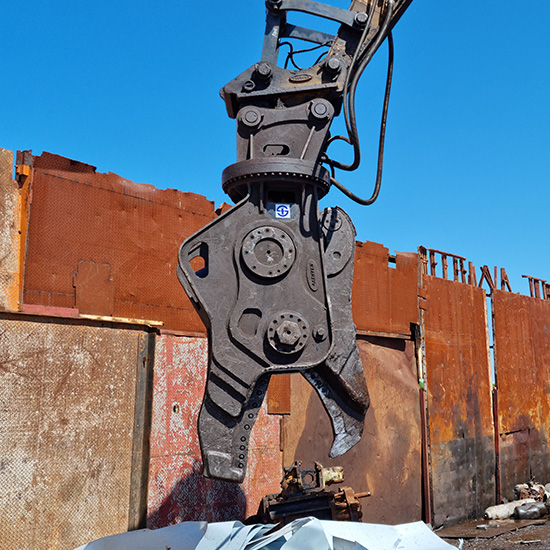

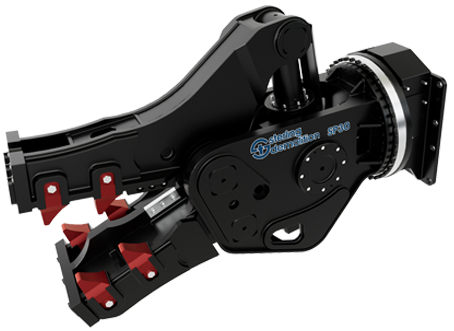

The Sterling One Cylinder Multi-Processor combines multiple functions in one versatile attachment.
By simply changing the jaw set, it can perform cutting demolishing and pulverizing tasks efficiently. Ideal for primary and secondary demolition, it provides superior power, speed, and flexibility on site
Product features
Pulverizer Jaw is equipped with replaceable teeth
Teeth are made by a special casting method.
A built-in speed valve ensures faster cycle times and greater crushing and cutting forces
Interchangeable and reversible cutting blades
Short and compact body design enhances work efficiency

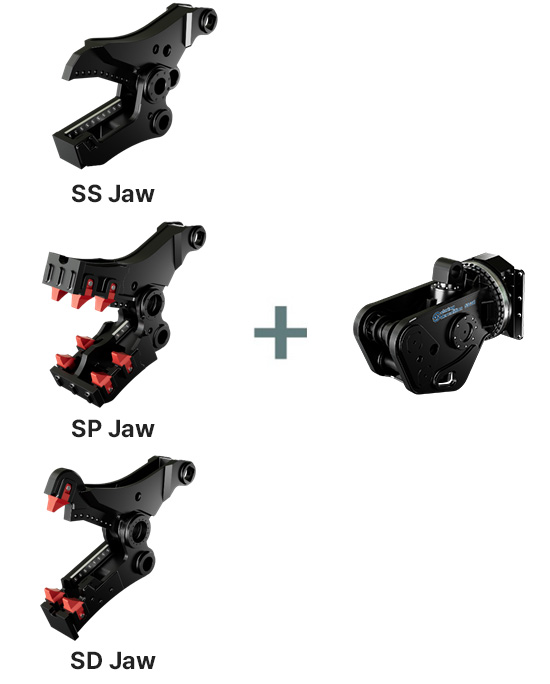

Three quick change Jaw sets : Shear, Pulverizer and Demolition
-

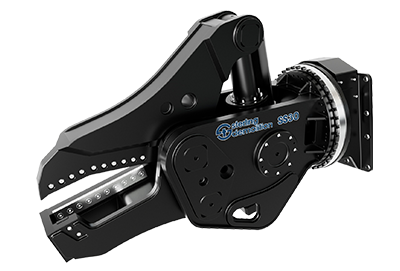

SS Series (Shear)
-

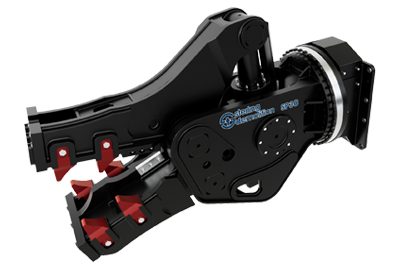

SP Series (Pulverizer)
-

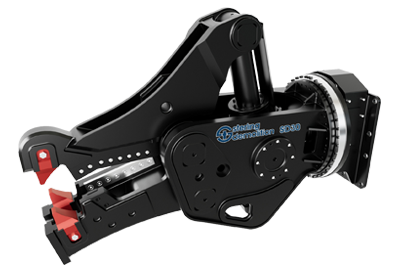

SD Series (Demolition)

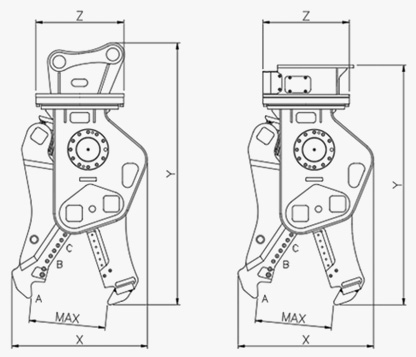

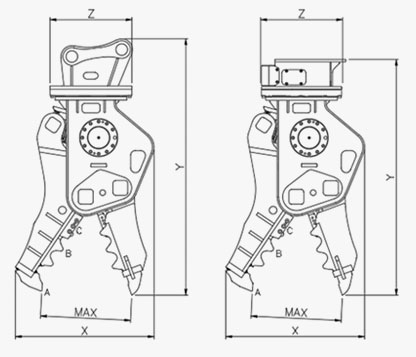

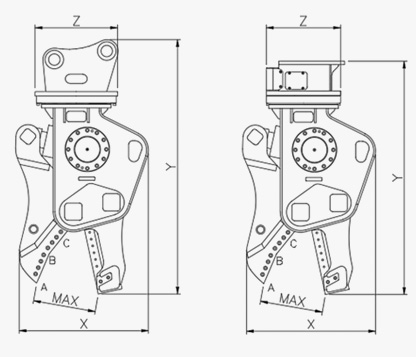

SPECIFICATION
SS Series (Shear)
SP Series (Pulverizer)
SD Series (Demolition)
| Description | Unit | SS 20 | SP 20 | SD 20 | SS 30 | SP 30 | SD 30 |
|---|---|---|---|---|---|---|---|
| Operating Weight | kg | 2,100 | 2,150 | 2,000 | 2,600 | 2,650 | 2,700 |
| lb | 4,630 | 4,740 | 4,409 | 5,732 | 5,842 | 5,952 | |
| Overall Length, Y-axis (Pin Type) | mm | 2,335 | 2,420 | 2,325 | 2,455 | 2,585 | 2,445 |
| Inch | 92 | 95 | 92 | 97 | 102 | 96 | |
| Overall Length, Y-axis (Plate Type) | mm | 2,150 | 2,235 | 2,140 | 2,250 | 2,380 | 2,240 |
| Inch | 85 | 88 | 84 | 89 | 94 | 88 | |
| Overall Width, X-axis | mm | 1,185 | 1,360 | 1,250 | 1,220 | 1,400 | 1,280 |
| Inch | 47 | 54 | 49 | 48 | 55 | 50 | |
| Overall Width, Z-axis | mm | 700 | 700 | 700 | 800 | 800 | 800 |
| Inch | 28 | 28 | 28 | 31 | 31 | 31 | |
| Max. Opening Width, MAX | mm | 520 | 880 | 760 | 610 | 910 | 710 |
| Inch | 20 | 35 | 30 | 24 | 36 | 28 | |
| Crushing & Cutting | ton (A) | 63 | 53 | 48 | 85 | 69 | 83 |
| Force | ton (B) | 87 | 97 | 117 | 142 | 125 | 165 |
| ton (C) | 170 | 170 | 170 | 217 | 217 | 217 | |
| Operating Pressure | kg/cm² | 320 | 320 | 320 | 320 | 320 | 320 |
| psi | 4,551 | 4,551 | 4,551 | 4,551 | 4,551 | 4,551 | |
| Oil Flow Rate | LPM | 200 ~ 250 | 200 ~ 250 | 200 ~ 250 | 250 ~ 320 | 250 ~ 320 | 250 ~ 320 |
| GPM | 53 ~ 66 | 53 ~ 66 | 53 ~ 66 | 66 ~ 85 | 66 ~ 85 | 66 ~ 85 | |
| Motor Setting Pressure | kg/cm² | 160 | 160 | 160 | 160 | 160 | 160 |
| psi | 2,276 | 2,276 | 2,276 | 2,276 | 2,276 | 2,276 | |
| Motor Oil Flow Rate | LPM | 36 ~ 40 | 36 ~ 40 | 36 ~ 40 | 36 ~ 40 | 36 ~ 40 | 36 ~ 40 |
| GPM | 10 ~ 11 | 10 ~ 11 | 10 ~ 11 | 10 ~ 11 | 10 ~ 11 | 10 ~ 11 | |
| Suitable Excavator | ton | 19 ~ 26 | 19 ~ 26 | 19 ~ 26 | 26 ~ 32 | 26 ~ 32 | 26 ~ 32 |
| Cylinder Size (mm) | mm | Ø200 | Ø200 | Ø200 | Ø225 | Ø225 | Ø225 |
| Opening / Closing Normal Time | Opening (sec) | 2.3 | 2.3 | 2.3 | 3.5 | 3.5 | 3.5 |
| Closing (sec) | 5.4 | 5.4 | 5.4 | 6.2 | 6.2 | 6.2 | |
| Opening / Closing Speed-Type Time | Total Cycle (sec) | 7.7 | 7.7 | 7.7 | 9.7 | 9.7 | 9.7 |
| Opening (sec) | 2.3 | 2.3 | 2.3 | 3.5 | 3.5 | 3.5 | |
| Closing (sec) | 3 | 3 | 3 | 3.6 | 3.6 | 3.6 | |
| Total Cycle (sec) | 5.3 | 5.3 | 5.3 | 7.1 | 7.1 | 7.1 | |
| Based Oil Flow | LPM | 240 | 240 | 240 | 300 | 300 | 300 |
