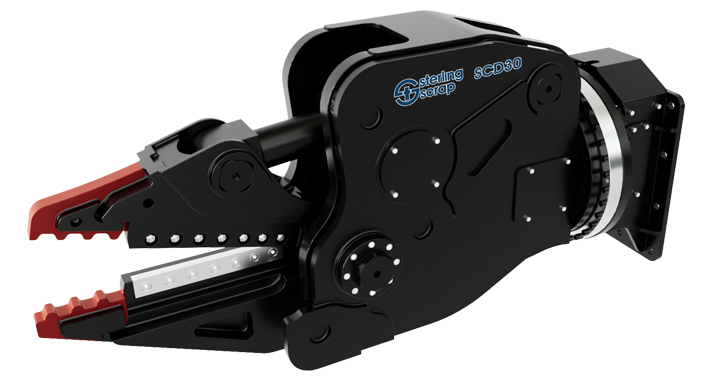

Car Dismantler

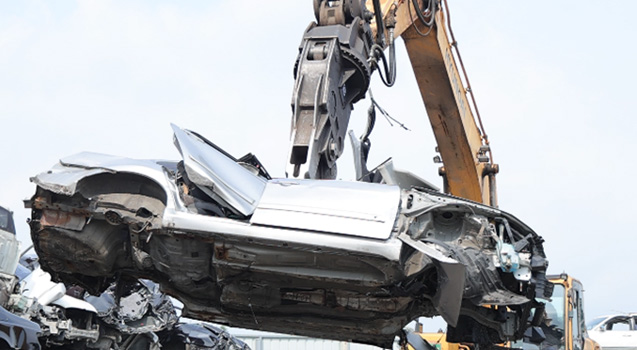

The Sterling Car Dismantler is a specialized attachment for vehicle recycling applications.

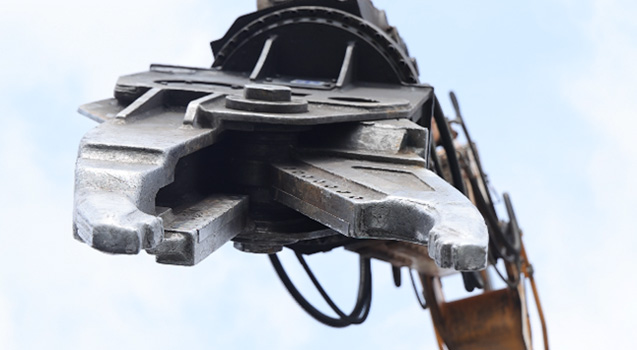

With its powerful jaws and precise control, it allows operators to dismantle cars efficiently — separating engines, wiring, and body panels with minimal damage.
Product features
Powerful motor enables 360° rotation for precision work
Cut vehicles easier and dismantle them quicker
Rapid dismantling boosts efficiency
Achieve a significant increase in efficiency and handle the precise operations
SPECIFICATION
SCD Series (Car Dismantler)

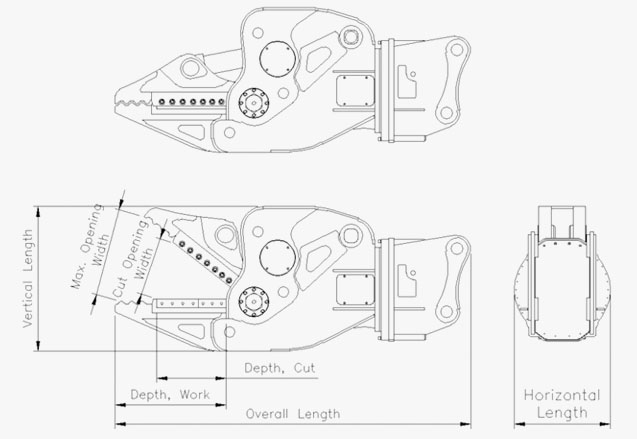

| Description | Unit | SCD 15 | SCD 20 | SCD 30 |
|---|---|---|---|---|
| Operating Weight | kg | 900 | 1,910 | 2,100 |
| lb | 1,984 | 4,210 | 4,629 | |
| Overall Length | mm | 1,900 | 2,560 | 2,610 |
| inch | 48 | 100 | 102 | |
| Vertical Length | mm | 900 | 1,045 | 1,045 |
| inch | 35 | 41 | 41 | |
| Horizontal Length | mm | 590 | 692 | 815 |
| inch | 23 | 27 | 32 | |
| Max. Opening Width | mm | 600 | 650 | 650 |
| inch | 23 | 25 | 25 | |
| Cutter Opening Width | mm | 415 | 415 | 415 |
| inch | 16 | 16 | 16 | |
| Depth, Work | mm | 600 | 800 | 800 |
| inch | 23 | 31 | 31 | |
| Depth, Cutter | mm | 230 | 500 | 500 |
| inch | 9 | 19 | 19 | |
| Crushing Force at Tip | ton | 12 | 42 | 47 |
| Max. Cutting Force | ton | 50 | 165 | 185 |
| Operating Pressure | kg/cm² | 300 | 320 | 350 |
| Operating Oil Flow Rate | LPM | 250~300 | 250 ~ 300 | 250 ~ 320 |
| Rotating Motor Quantity | ea | 2 | 2 | 2 |
| Motor Setting Pressure | kg/cm² | 120 | 160 | 160 |
| Motor Oil Flow Rate | LPM | 15~20 | 36 ~ 40 | 36 ~ 40 |
| Suitable Excavator | ton | 12~17 | 18 ~ 26 | 26 ~ 32 |
