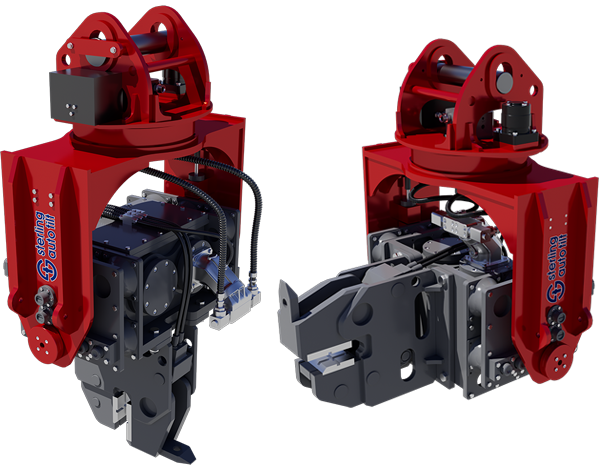

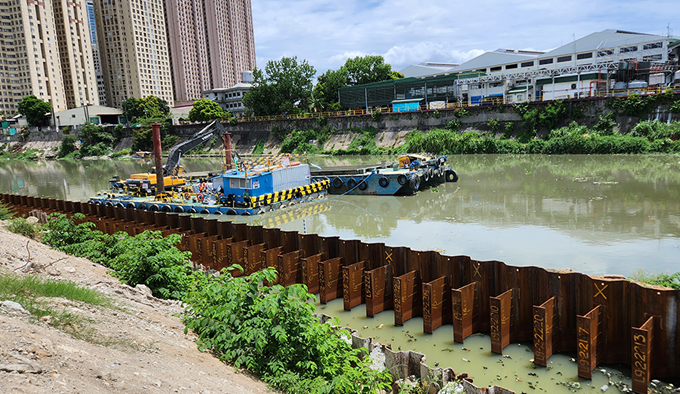

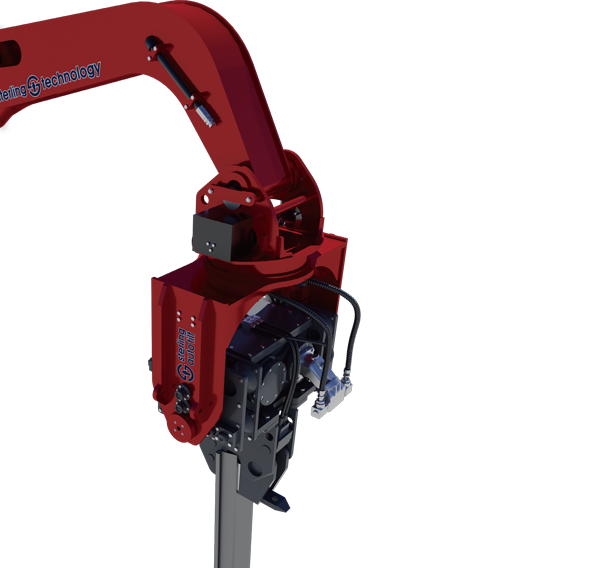

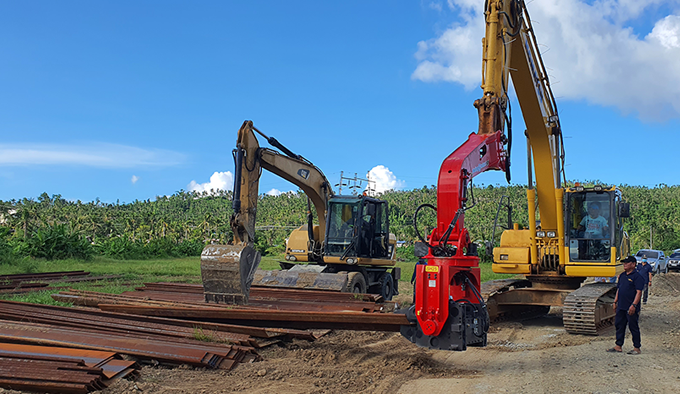

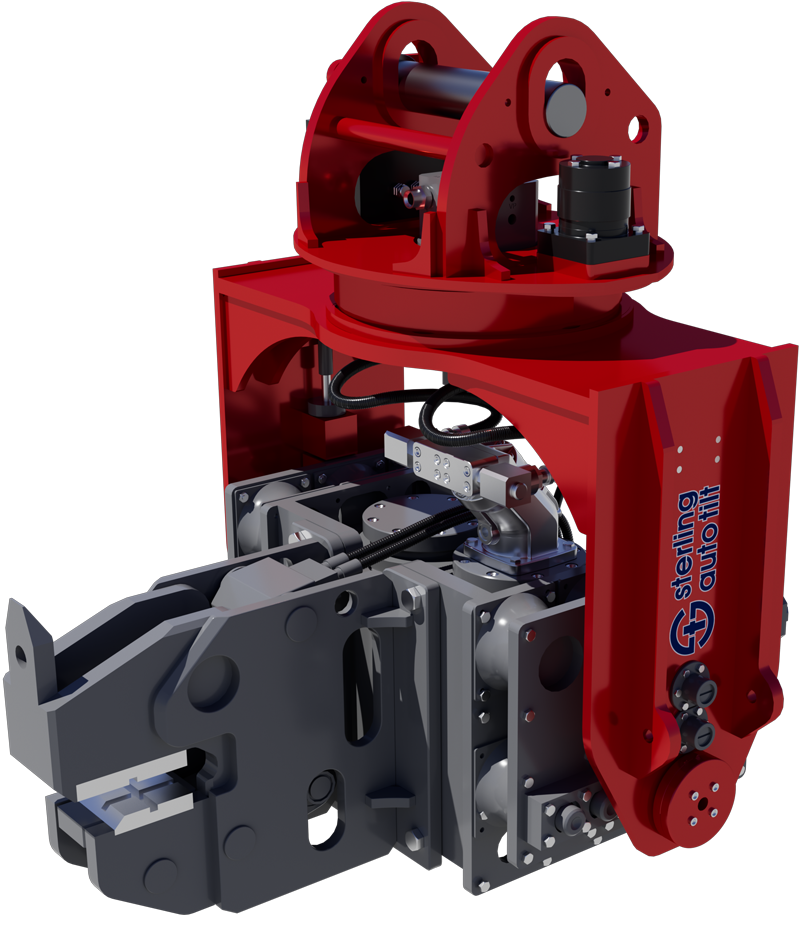

Sterling Auto Tilt Hammer is an existing most robust tilt type hammer!

Significantly wider offering & 4 market segments enable further success!

Sterling Auto Tilt Hammer is an existing most robust tilt type hammer!

Model	Unit	SH15 TILT	SH25 TILT	SH30 TILT	SH40 TILT
Excavator	ton	13~18	20~26	28~36	36~50

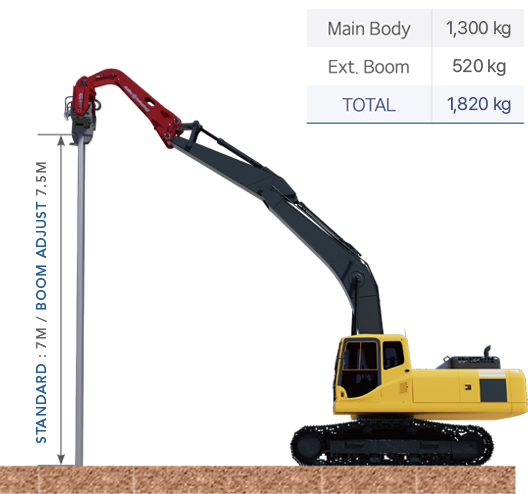

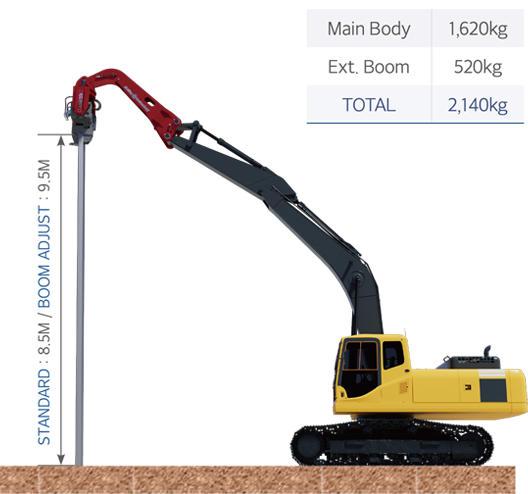

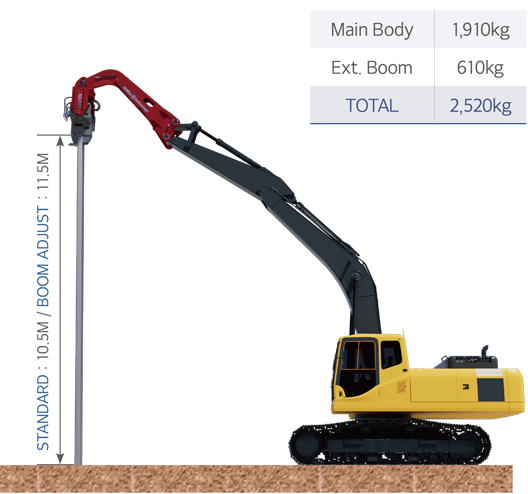

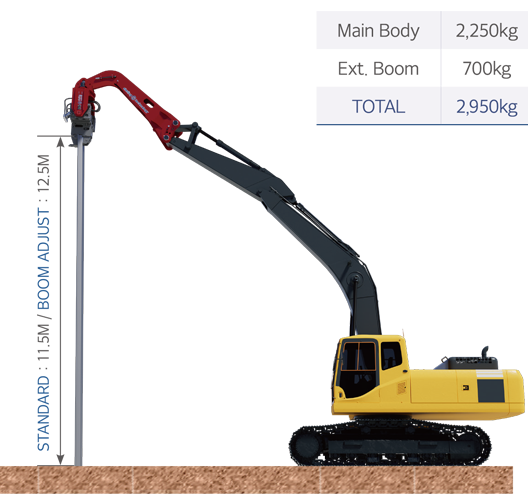

Hammer Weight	Kg / Lbs	1300 / 2866	1620 / 3,571	1,910 / 4,211	2,250 / 4,960

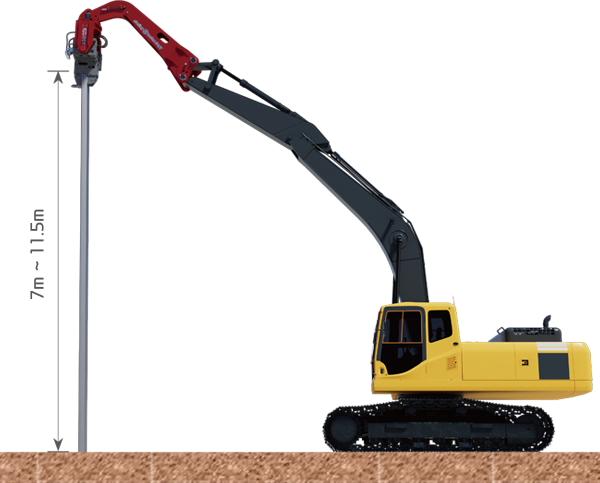

Extension boom weight	Kg / Lbs	520 / 1,146	520 / 1,146	610 / 1,345	700 / 1,543
Setting pressure	bar / PSI	300 / 4,350
Oil Flow	lpm / gpm	90~110 / 24~29	150-170 / 40~45	180-220 / 48~58	240-260 / 63~69
Centrifugal Force	kN / Tons	324 / 38	530 / 58	580 / 64	940 / 103
Frequency	RPM	2800 ~ 3400	3,300~3,600	2,800~3,600	3,000~3,250
Rotation	deg	360˚
Tilt angle	deg	90˚
Jaw open	mm / inch	65 / 2.6

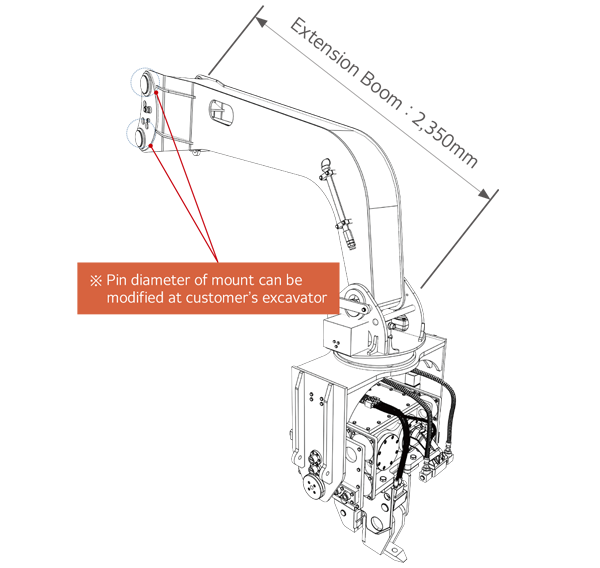

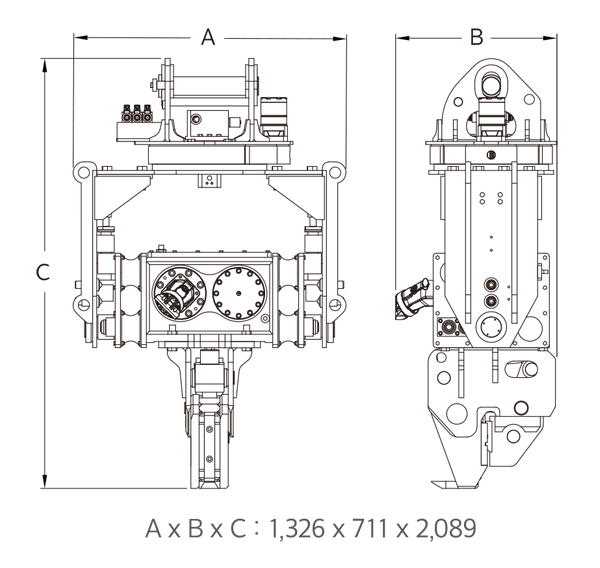

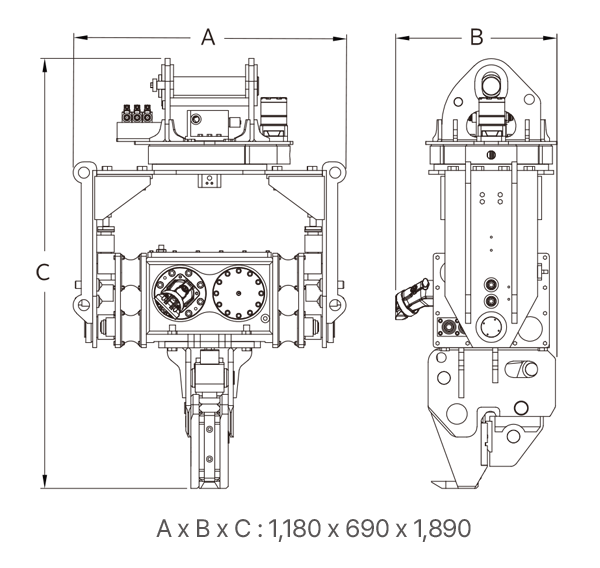

Dimension [A x B x C]	mm inch	1,264 x 690 x 2,035 49.7 x 27.1 x 80.1	1,326 x 711 x 2,089 52.2 x 27.9 x 82.2	1,326 x 805 x 2,068 52.2 x 31.7 x 81.4	1,435 x 900 x 2,180 56.5 x 35.4 x 85.8

* Specifications above are subject to change without notice.

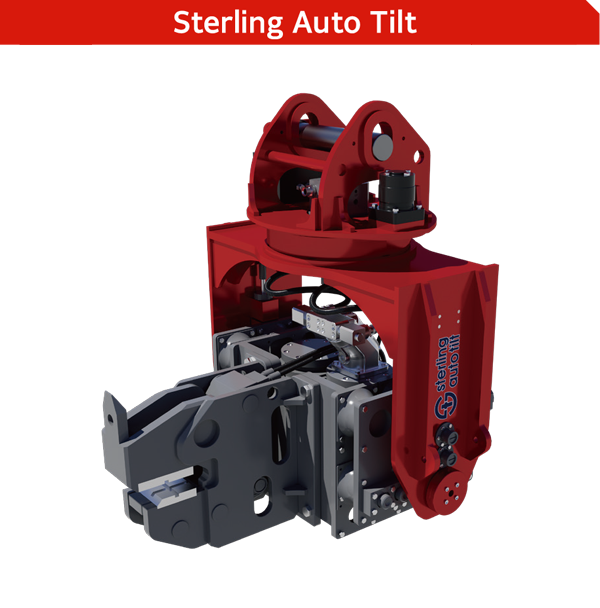

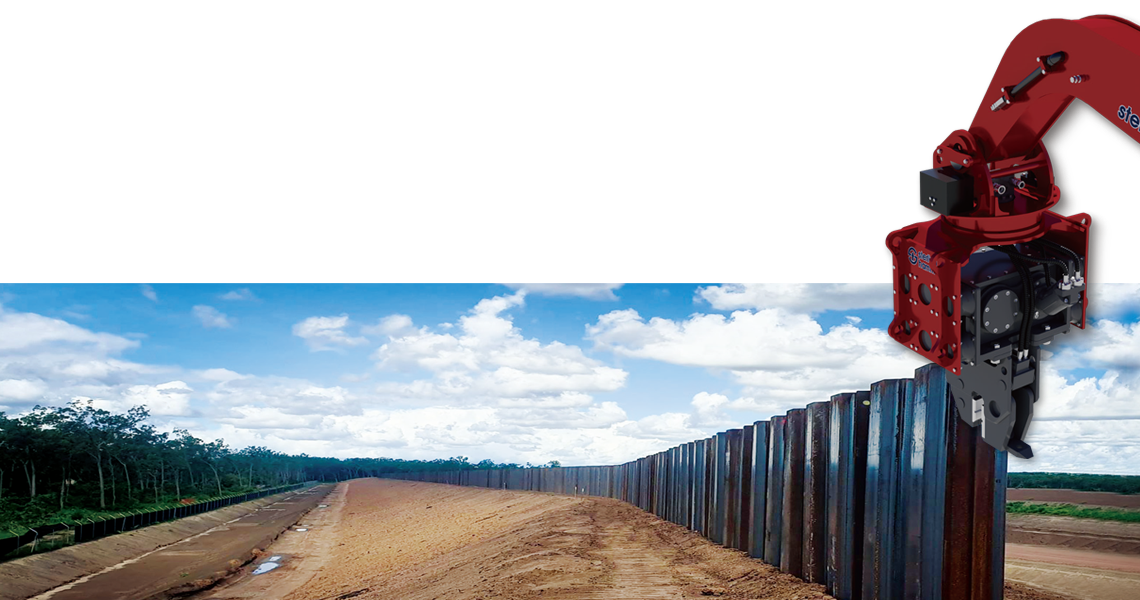

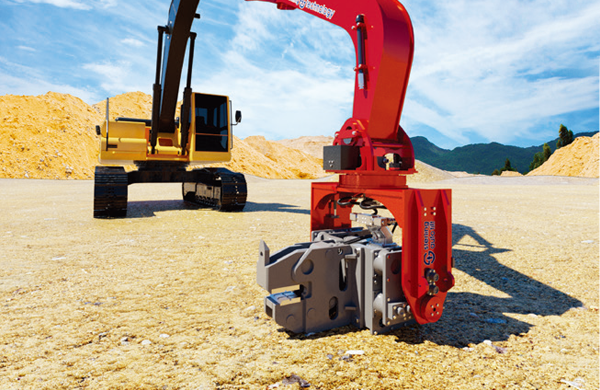

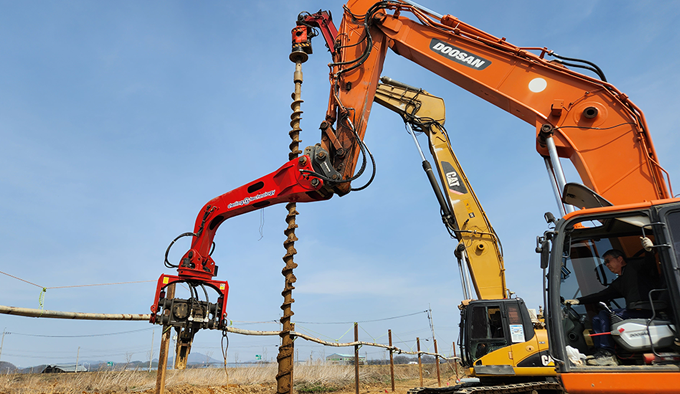

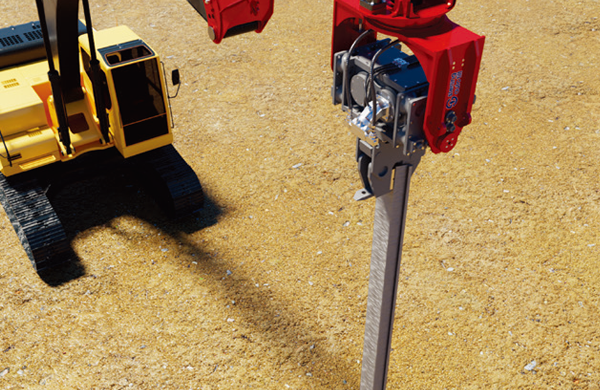

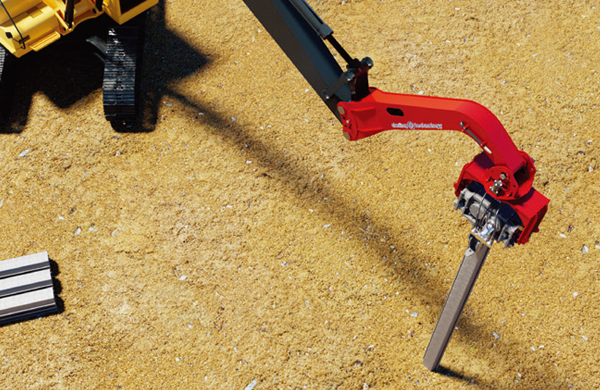

90-degree tilt / 360。hydraulic rotation function enable more efficient and safer works

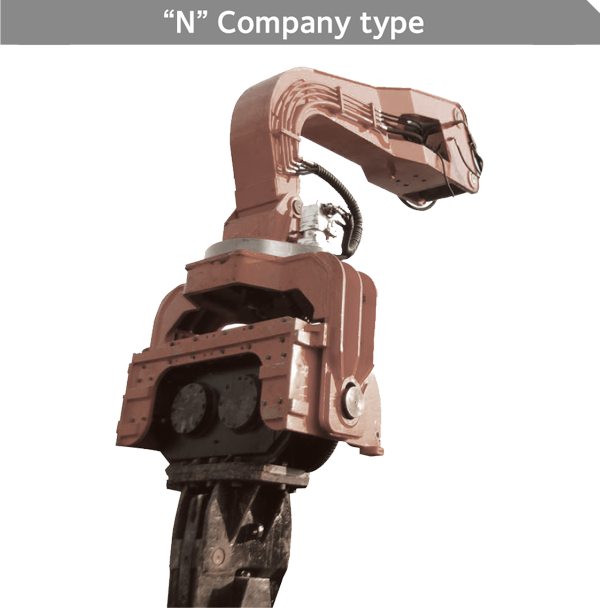

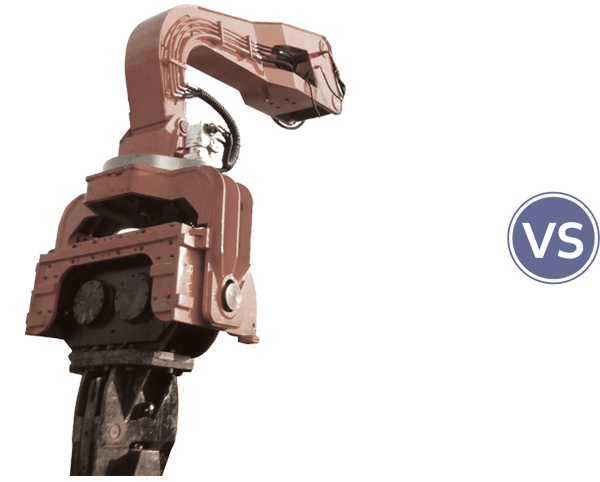

	Sterling Auto Tilt type	Conventional Hydraulic Tilt type	"N” Company type
Feature	90-degree tilt / 360。hydraulic rotation function “Auto Hold” function on 90-degree tilt position	90-degree tilt/ 360。hydraulic rotation function Tilt function by hydraulic cylinders	90-degree tilt/ 360。rotation function
Strong point	More efficient and safer works Compact design with no failure-prone cylinders of tilt function Low maintenance	More efficient and safer works than non-tilt type vibro hammers	-
Weak point	-	Failure-prone cylinders for tilt function Higher maintenance costs Relatively expensive	Low vibratory power Many hydraulic lines forward to excavator

Conventional Hammer
Sterling Hammer
- Sterling Hammer is an existing most powerful hammer in the same class!
- Bigger and heavier eccentric weights make Sterling Hammer most powerful in class

Feature	How to do & Effect

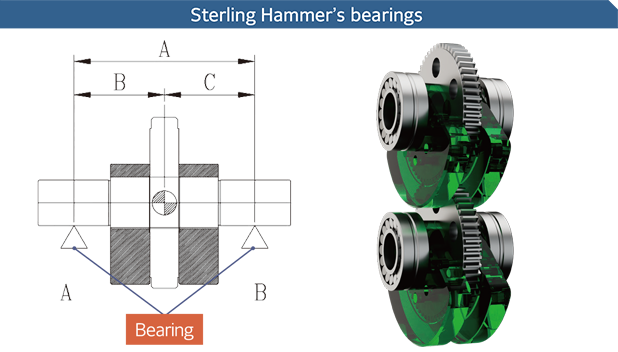

Centered double eccentric weights	Unique design of centered double eccentric weights allow better durability of bearings

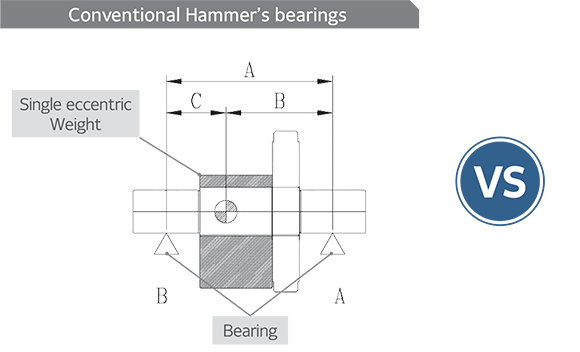

	Conventional hammer’s bearings	Sterling hammer’s bearings
Distance from axis A	A=B+C, B > C	A=B+C, B = C
Center of gravity	B and C ≠ A/2	B and C = A/2
Weight distribution	“Bearing B” has more weight than “bearing A”.	Weight of “A bearing” and “B bearing” is the same.
Effect	Life time of both “A bearing” and “B bearing” is shorten due to imbalance of their weight.	Longer life time of both “A bearing” and “B bearing”

Feature	How to do & Effect

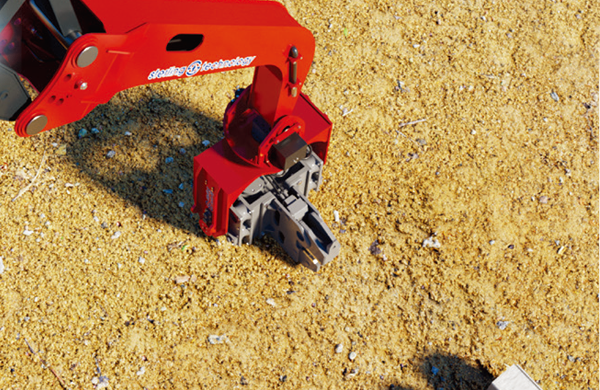

“Auto Hold” function of Sterling Auto Tilt	“Auto Hold” function on 90-degree tilt position Compact design with no failure-prone cylinders of tilt function

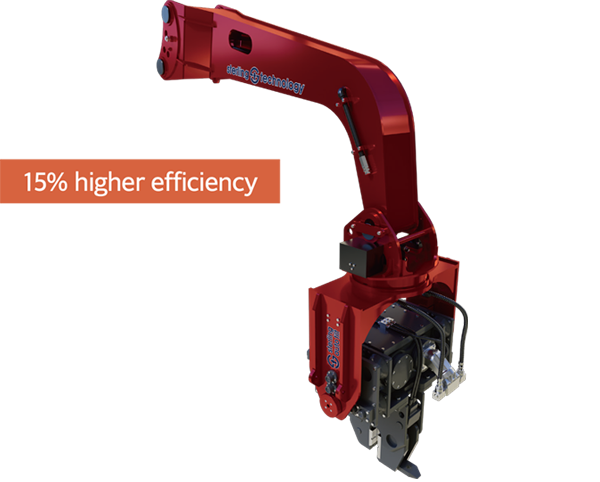

Most powerful hammer in class	Bigger and heavier eccentric weights make Sterling Hammer most powerful in class. One class higher productivity and efficiency (15% higher than traditional vibratory hammers.)
Centered double eccentric weights	Unique design of centered double eccentric weights allow better durability of bearings
Low maintenance cost	Concise structure of components Longer durability
